PVC Sheet Pile Backfill and Drainage: What to Plan Behind the Wall
The visible face of a PVC sheet pile wall tells only part of the story. Ground and water behind the wall affect the design assumptions and the construction sequence. A good backfill plan therefore starts before material is placed, with a clear answer to two questions: what will be retained, and where will water go?
The points below help buyers and project teams prepare an informed discussion. They are not a substitute for a site-specific design, geotechnical review or the installation contractor's method statement.
Start with the final ground profile
Mark the proposed top of wall, existing ground, finished backfill level and any change in level along the alignment. Show nearby pavements, vehicles, stored materials, buildings and other loads that the responsible designer may need to consider. A single wall height on a quotation is not enough to describe every cross-section.
State whether excavated soil will be reused or imported fill is planned. The required material properties and placement criteria should come from the project specification. If the ground level or use of the area changes, the wall and its backfill assumptions may need another review.
Give water a defined route

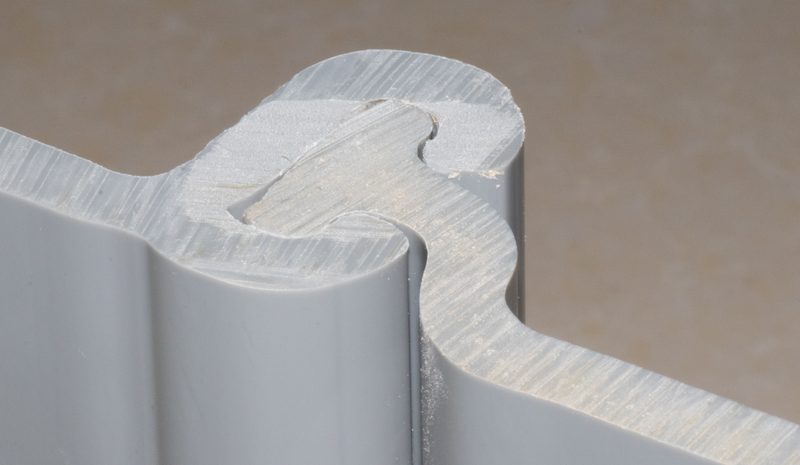

Review surface runoff, groundwater, seepage and any water-level difference across the wall. Do not assume the PVC sheet pile interlocks serve as a drainage system or that an ordinary wall is automatically watertight. The project designer must decide whether the wall is to be drained, designed for retained water pressure, or detailed for a different water-control objective.
If drainage is part of the design, show how water reaches a collector and where it can discharge. Identify the outlet elevation, access for inspection and any risk that an outlet could become blocked or submerged. Drains, filters, geotextiles and weep details should be specified for the site rather than added as generic accessories.
Agree on backfill placement and equipment limits
Before backfilling, confirm the approved fill, placement sequence, compaction requirements and permitted equipment near the wall. These details depend on the wall design and site conditions; a universal lift thickness or compaction target should not be copied from another project. Heavy plant operating close to a wall can introduce loads that were not intended in the design.
The contractor should know when any ties, caps or other supporting elements must be installed relative to fill placement. Changes to the sequence, fill source or machinery should be reviewed through the project's normal approval process.
Check interfaces and record what happens
Pay special attention to wall ends, corners, pipe crossings, existing structures and changes in ground level. These interfaces can affect both the physical backfill arrangement and the intended water path. Show them on drawings so the site team is not left to improvise during placement.
Before fill covers the rear of the wall, check the installed alignment, top level and any drainage components required by the drawings. During placement, record unexpected movement, leakage paths, blocked outlets or differences between the actual fill and approved specification. Resolve discrepancies with the responsible designer before concealing them.
What to send with a PVC sheet pile inquiry
Share a plan and representative sections, intended retained heights, ground investigation, water-level information, proposed backfill source, nearby loads, drainage concept and installation access. If an outlet or other detail is not yet decided, say so clearly. XILAI can use this information to discuss suitable PVC sheet pile profiles and product documentation with your project team; final wall and drainage design remains project-specific.
