In the world of industrial holding, fixture design, and display mounting, neodymium channel magnets (also known as channel neodymium magnets) stand out as one of the most reliable and powerful permanent magnet assemblies available. Combining the extreme magnetic strength of neodymium with a protective steel channel, these components offer superior holding force and easy installation. As a leading manufacturer, Ningbo XILAI Technology Co., Ltd. specializes in producing high-quality channel magnets tailored to meet diverse application needs – from heavy-duty industrial clamping to elegant retail displays.
What Are Neodymium Channel Magnets?

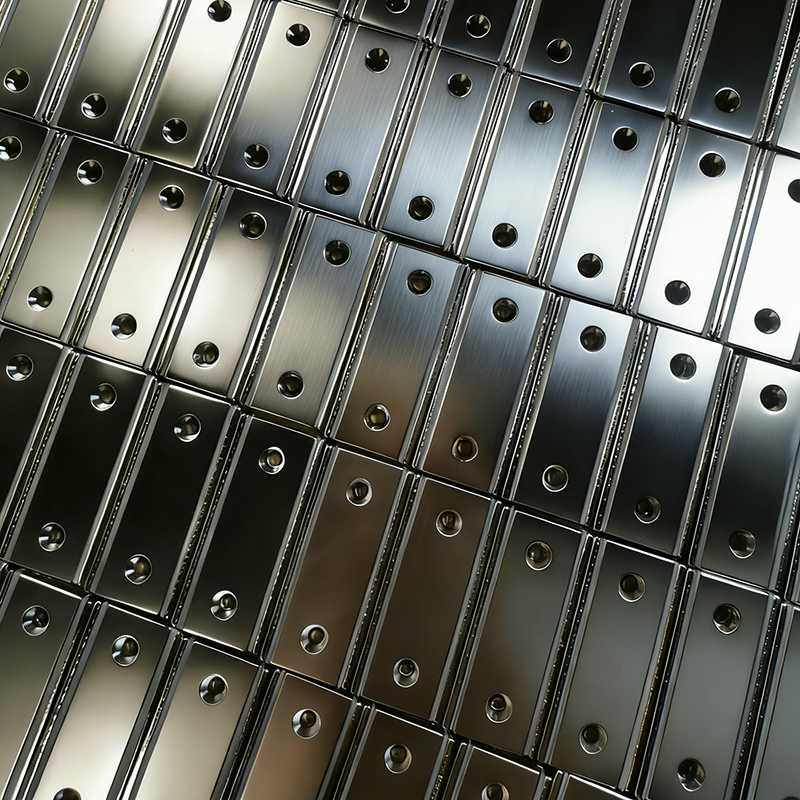

A neodymium channel magnet is a pre-assembled magnetic unit consisting of a sintered neodymium magnet (NdFeB) encased in a robust steel channel (often referred to as a “pot” or “housing”). The steel channel is typically U-shaped and made from magnetic materials like low-carbon steel (e.g., Q195 or Q235). This design is not merely for protection; it fundamentally enhances the magnet’s performance.
Why Choose Channel Neodymium Magnets?
1. Concentrated Magnetic Flux
Unlike a bare magnet whose magnetic field radiates in all directions, the steel channel redirects the magnetic lines of force to the open face of the assembly. This concentration significantly increases the magnetic flux density at the contact surface, resulting in holding forces that are dramatically higher than a comparable bare magnet.
2. Protection for Brittle Neodymium
Sintered neodymium magnets are extremely strong but also brittle and prone to chipping or cracking under impact. The steel housing shields the magnet from mechanical damage, ensuring longevity even in harsh industrial environments subject to vibration and shock.
3. Easy and Secure Mounting
Most channel magnets feature one or more countersunk holes (typically for M3 screws). This allows you to securely fasten the magnet assembly to wood, plastic, or non-ferrous surfaces using flat-head screws – eliminating the risk of the magnet shifting due to its own strong attraction.
Key Applications
Channel neodymium magnets from Ningbo XILAI Technology Co., Ltd. are widely used across various sectors:
Industrial Fixturing & Workholding: Ideal for welding fixtures, assembly jigs, and temporary holding of ferrous parts during machining or maintenance.
Signage & Display Mounting: A clean, non-adhesive alternative for mounting retail signage, posters, exhibition panels, and permanent logos – allowing for easy changes without surface damage.
Woodworking & Cabinetry: Used for hidden door catches, magnetic cabinet latches, and removable furniture connections, preserving aesthetic appeal.
Tool Organization: Mounted on workshop walls or toolboards to securely hold metal tools, improving visibility and space utilization.
Technical Specifications and Customization
At Ningbo XILAI Technology, we understand that one size does not fit all. We offer a range of standard sizes and full customization for channel neodymium magnets.
Standard Sizes: Common dimensions include lengths from 20 mm to 120 mm, width 13.5 mm, height 5 mm, with one or two countersunk M3 holes. Pull forces range from approximately 4 kg to over 42 kg, depending on size.
Magnetic Grades: Available in various neodymium grades (N35 to N52) to balance cost and magnetic performance according to your requirements.
Surface Finishes: Standard nickel-copper-nickel (Ni-Cu-Ni) plating provides good corrosion resistance. Options like zinc plating or epoxy coating are also available for specialized environments.
Custom Dimensions: We can produce channel magnets with non-standard lengths, widths, hole patterns, or special steel grades based on your drawings or samples.
Typical Product Range
| Model | Length (mm) | Width (mm) | Height (mm) | Countersunk | Pull Force (kg) |
|---|---|---|---|---|---|
| XLC-20 | 20 | 13.5 | 5 | 1 x M3 | ~8 |
| XLC-40 | 40 | 13.5 | 5 | 2 x M3 | ~17 |
| XLC-60 | 60 | 13.5 | 5 | 2 x M3 | 28-30 |
| XLC-80 | 80 | 13.5 | 5 | 2 x M3 | 33-35 |
| XLC-120 | 120 | 13.5 | 5 | 2 x M3 | 40-42 |
Note: Pull force values are approximate and depend on contact surface thickness, material, and condition.
Why Choose Ningbo XILAI Technology Co., Ltd.?
Technical Expertise: With years of experience in the magnetic industry, our team can help you select the optimal magnet grade, coating, and geometry for your specific application.
Stringent Quality Control: We enforce tight tolerances (e.g., ±0.05mm on dimensions) and conduct thorough adhesion tests on coatings to ensure every magnet delivers consistent performance.
Flexible Quantities: Whether you need small batches for prototyping or large volumes for mass production, we offer competitive pricing and reliable lead times.
Custom Solutions: We thrive on challenging projects. If you have a unique requirement, our engineers will work with you to develop a custom channel magnet assembly.
Conclusion
Neodymium channel magnets are indispensable components for anyone requiring robust, reliable, and easy-to-mount magnetic holding. Their enhanced holding force and protective design make them superior to bare magnets in almost every industrial and commercial application. If you are looking for a trusted partner for neodymium channel magnets or channel neodymium magnets, look no further than Ningbo XILAI Technology Co., Ltd. Contact us today to discuss your requirements and experience the XILAI difference.
